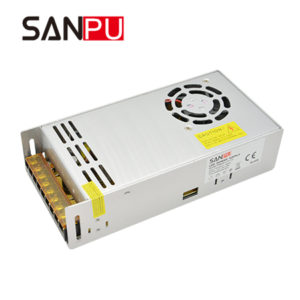

600W Indoor Power Supply IP20
Model: PS600-H1V
Rated Power: 600W
Output Voltage: 12V/24V
IP Grade: 20
Certificate: CE ROHS
Warranty: 3 year
●175-240V AC input
●Single Output
●85% high efficiency
●100% full load bur-in test
●Protection: OTP,OLP,OVP,SCP
●CE ROHS Certified
●3 year warranty
| Specifications | |||||
| Product Code | PS600-H1V12 | PS600-H1V24 | |||
| Output | DC Voltage | 12V | 24V | ||
| Rated Current | 50A | 25A | |||
| Current Range | 0~50A | 0~25A | |||
| Voltage tolerance | ±5% | ±5% | |||
| Rated Power | 600W | 600W | |||
| Ripple & Noise | <120mVp-p | <240mVp-p | |||
| Set-up, Rise Time | 1500ms, 30ms / 230VAC | ||||
| Input | Input voltage range | 175-240 VAC | |||
| Frequency Range | 50~60Hz | ||||
| AC Current | 5.4A / 230VAC | ||||
| Efficiency | 85% | 88% | |||
| PF | 0.6 | ||||
| Protection | Over Load | Above 110%-150% of rated power | |||
| Shut-down output voltage, auto recovery after fault condition is removed | |||||
| Over Voltage | Above Max. Voltage (105% of rated voltage) | ||||
| Shut-down output voltage, auto recovery after fault condition is removed | |||||
| Over Temperature | Over 130°C detected on main IC control | ||||
| Shut-down output voltage, auto recovery after fault condition is removed | |||||
| Ambiant | Working Temp. & humidity | “-20°C~+60°C, 20%~90%RH | |||
| Storage temp. & humidity | “-40°C~+85°C, 10%~95%RH | ||||
| Tesings | Withstand voltage | I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min; |
|||
| Safety | GB4943 ;IEC60950-1; EN60950-1 | ||||
| EMC | EN55032:2015/AC:2016 EN61000-3-2:2014 EN61000-3-3:2013 EN55024:2010+A1:2015 |
||||
| LVD | EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 | ||||
| Other | Lifespan | 20000hrs | |||
| Demension(L*W*H) | 199*99*50mm | ||||
| Packing | 0.8kg/pcs, 36pcs/27kg/CTN | ||||
